Buy AVYCON AVC-MT91FT, 2.1MP HD-TVI Pinhole Square Board Camera

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Square Board Camera

Features:

TVI Solution
1/2.8" Megapixel Sensor
0.15" (3.7 mm) MP Pinhole Lens (ICR)
Video Output: HD 1080P at 30fps / 25fps
Support UTC Function to Remote Control OSD Menu
Dual Video-Out (HD-TVI / Analog)
DC 12V

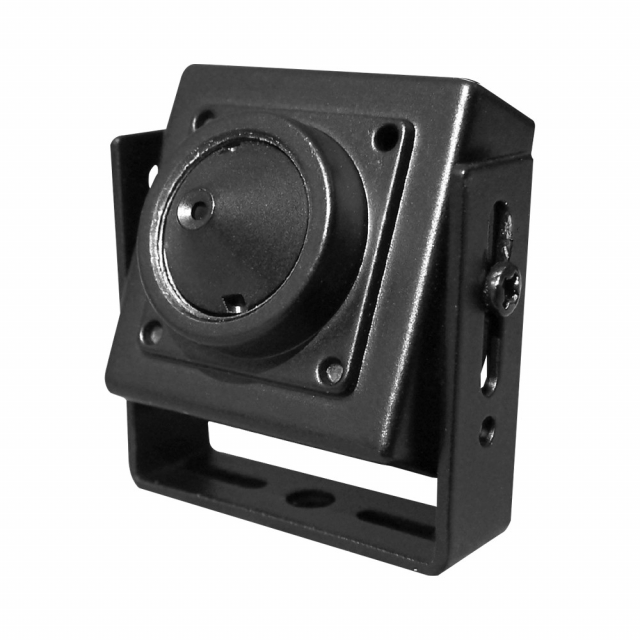

The Avycon AVC-MT91FT Camera is a 2.1MP HD-TVI Pinhole Lens Mini Square Board Camera. This Camera includes a 3.7 mm Pinhole Lens. Also standard with this series is the ability to control OSD Menu remotely, along with a dual Video-out for HD-TVI / Analog.

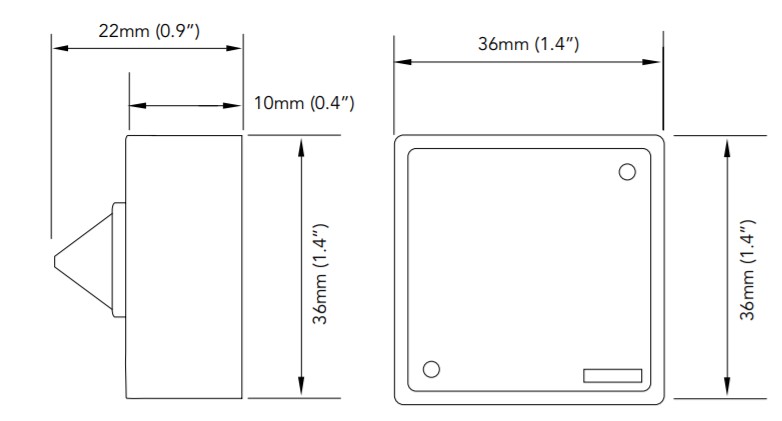

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Image Sensor	1/2.8" Megapixel Sensor
Image Resolution	1920 x 1080
Scanning System	2.1 Megapixels
Video Output	1 HD-TVI Output / 1.0Vp-p 75Ω
S/N Ratio	More than 50dB
Auto Gain Control (AGC)	Off
Lens	0.15" (3.7 mm) MP Pinhole Lens (ICR)
Electronic Shutter	1/25 ~ 1/50000s
Backlight Compensation (BLC)	Yes
White Balance	ATW
Day and Night	True
Privacy Masking	Off
DNR	Auto
BLC	Yes
Sens-Up	N/A
Motion Detection	N/A
WDR	True
IR Led	N/A
Input Voltage	DC 12v (±10%)
Power Consumption	80mA (Max.)
Operating Environment	-4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity
Storage Environment	-4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor	1/2.8" Megapixel Sensor
Image Resolution	1920 x 1080
Scanning System	2.1 Megapixels
Video Output	1 HD-TVI Output / 1.0Vp-p 75Ω
S/N Ratio	More than 50dB
Auto Gain Control (AGC)	Off
Lens	0.15" (3.7 mm) MP Pinhole Lens (ICR)
Electronic Shutter	1/25 ~ 1/50000s
Backlight Compensation (BLC)	Yes
White Balance	ATW
Day and Night	True
Privacy Masking	Off
DNR	Auto
BLC	Yes
Sens-Up	N/A
Motion Detection	N/A
WDR	True
IR Led	N/A
Input Voltage	DC 12v (±10%)
Power Consumption	80mA (Max.)
Operating Environment	-4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity
Storage Environment	-4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity

Note

Note: Please read description carefully. Do not base your order on the picture presented.
