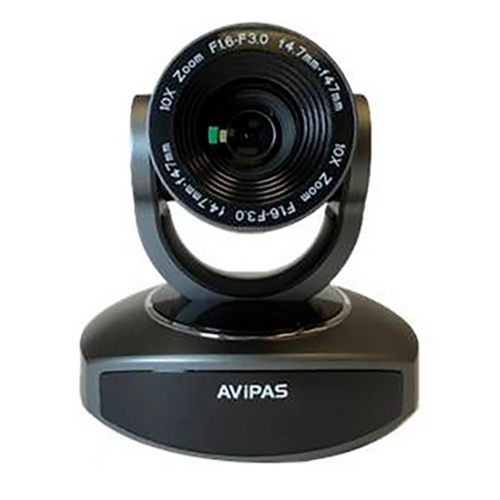

Buy AViPAS AV-1280G, 10x SDI PTZ Camera with PoE Dary Gray

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: SDI PTZ Camera w/ PoE
Optical Zoom:: Optical Zoom: 10x
Color:: Color: Dark Gray

AV-1280G Includes Only:

Camera
AC power adaptor
Power cord
6.5ft RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
IR remote control
User manual

Features:

Elegant, compact design; super quiet and smooth pan/tilt mechanism
1920 x 1080 high-resolution output with a frame rate up to 60fps
60.9° high-quality lens
High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
H.264/H.265 video compression
Low-power sleep function, lower than 0.4W
IP streaming & 3G-SDI output
RS-232 (VISCA/Pelco-D/Pelco-P), VISCA over IP and IR remote control
PoE supported

Avipas AV-1280 is a full HD 1080p camera with 10X optical zoom & 5X digital zoom, PoE supported. It is suitable for video conferencing, education, and houses of worship. AV-1280 has 2 outputs: 3G-SDI and LAN. It supports line-in audio through IP and SDI output. PoE supported (12V, 1.5A/12W).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Sensor

1/2.8", CMOS, 16:9, Effective Pixel: 2.07MP

Scanning Mode

Progressive

Lens

10x, f = 4.7 ~ 47mm, F1.6 ~ F3.0

Digital Zoom

Minimal Illumination

0.5 Lux at (F1.8, AGC ON)

Focus

Auto/Manual/One Push

Aperture

Auto/Manual

Electronic Shutter

Auto/Manual

White Balance

Auto/Manual/One Push/3000K/4000K/5000K/6500K

Backlight Compensation

On/Off

Digital Noise Reduction

2D and 3D Digital Noise Reduction

Video SNR

≥55dB

Video Adjustment

Brightness/Color/Saturation/Contrast/Sharpness/BW mode/Gamma curve

View Angle

6.43° (tele) --60.9° (wide)

Pan Rotation Range

±135°

Tilt Rotation Range

±30°

Pan Speed Range

0.1° ~ 60°/s

Tilt Speed Range

0.1° ~ 30°/s

Number of Preset

255

Preset Accuracy

0.1°

IPC Features

Video Coding Standard

H.265/H.264

Video Stream

First stream, Second stream

Video Format

SDI:
- 1080P60/50/30/25/59.94/29.97;
- 1080I60/50/59.94;
- 720P60/50/30/25/59.94/29.97
Main stream:1920x1080, 1280x720,640x480
Sub stream:
- 320x180,320x240,640x360,
- 640x480,1280x720,1920x1080

Frame Rate

50Hz: 1fps ~ 25ps; 60Hz: 1fps ~ 30fps

Audio Standard

AAC/MP3/G.711A

Sampling Rate

16000/32000/44100/48000

Network Protocols

RTSP/RTMP, ONVIF, GBT28181

Input/Output Interface

Communication Interface

RS232I/O: 8pin Min DIN;
Max Distance: 30m

Protocol

Pelco-D/Pelco-P/VISCA/VISCA over IP

Baud Rate

115200/9600/4800/2400

Video Output Interface

SDI, LAN, RS232 I/O, A-IN

Audio Input

1-ch 3.5mm audio interface, Line In

Network Interface

1xRJ45: 100M (10/100BASE-TX)

Power Jack

JEITA type (DC IN 12V), Ethernet (PoE supported)

Generic Specifications

Input Voltage

DC 12V

Current Consumption

1.0A (Max)

Operating Temperature

20°F~80°F (-10°C~50°C)

Storage Temperature

20°F~95°F (-10°C~60°C)

Power Consumption

12W (Max)

Size

6" x 6" x 5" (151.2mm x 152.5mm x 126.7mm)

Net Weight

3lb (1.4kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor

1/2.8", CMOS, 16:9, Effective Pixel: 2.07MP

Scanning Mode

Progressive

Lens

10x, f = 4.7 ~ 47mm, F1.6 ~ F3.0

Digital Zoom

Minimal Illumination

0.5 Lux at (F1.8, AGC ON)

Focus

Auto/Manual/One Push

Aperture

Auto/Manual

Electronic Shutter

Auto/Manual

White Balance

Auto/Manual/One Push/3000K/4000K/5000K/6500K

Backlight Compensation

On/Off

Digital Noise Reduction

2D and 3D Digital Noise Reduction

Video SNR

≥55dB

Video Adjustment

Brightness/Color/Saturation/Contrast/Sharpness/BW mode/Gamma curve

View Angle

6.43° (tele) --60.9° (wide)

Pan Rotation Range

±135°

Tilt Rotation Range

±30°

Pan Speed Range

0.1° ~ 60°/s

Tilt Speed Range

0.1° ~ 30°/s

Number of Preset

255

Preset Accuracy

0.1°

IPC Features

Video Coding Standard

H.265/H.264

Video Stream

First stream, Second stream

Video Format

SDI:
- 1080P60/50/30/25/59.94/29.97;
- 1080I60/50/59.94;
- 720P60/50/30/25/59.94/29.97
Main stream:1920x1080, 1280x720,640x480
Sub stream:
- 320x180,320x240,640x360,
- 640x480,1280x720,1920x1080

Frame Rate

50Hz: 1fps ~ 25ps; 60Hz: 1fps ~ 30fps

Audio Standard

AAC/MP3/G.711A

Sampling Rate

16000/32000/44100/48000

Network Protocols

RTSP/RTMP, ONVIF, GBT28181

Input/Output Interface

Communication Interface

RS232I/O: 8pin Min DIN;
Max Distance: 30m

Protocol

Pelco-D/Pelco-P/VISCA/VISCA over IP

Baud Rate

115200/9600/4800/2400

Video Output Interface

SDI, LAN, RS232 I/O, A-IN

Audio Input

1-ch 3.5mm audio interface, Line In

Network Interface

1xRJ45: 100M (10/100BASE-TX)

Power Jack

JEITA type (DC IN 12V), Ethernet (PoE supported)

Generic Specifications

Input Voltage

DC 12V

Current Consumption

1.0A (Max)

Operating Temperature

20°F~80°F (-10°C~50°C)

Storage Temperature

20°F~95°F (-10°C~60°C)

Power Consumption

12W (Max)

Size

6" x 6" x 5" (151.2mm x 152.5mm x 126.7mm)

Net Weight

3lb (1.4kg)
