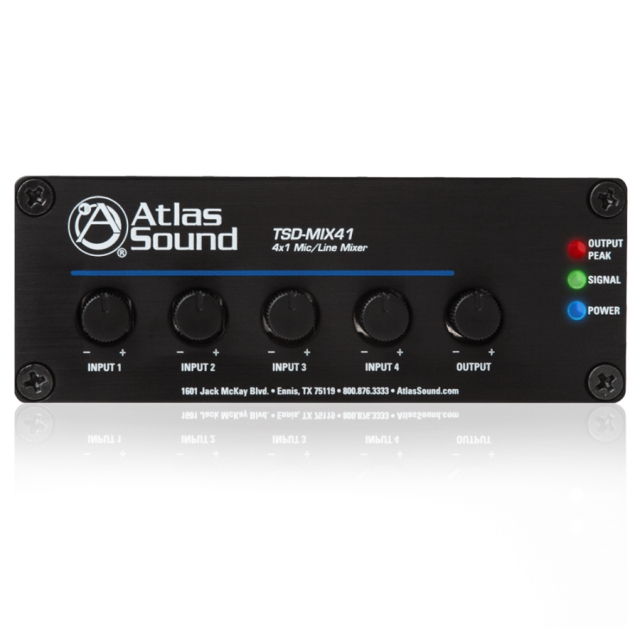

AtlasIED TSD-MIX41 4 x 1 Microphone Line Mixer

Features with all optional accessories:

• Four (4) Balanced Microphone / Line Inputs
• Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
• Up to 50dB Microphone Gain Per Input
• 12dB/Octave Low Cut Filter at 125Hz
• Balanced Line Output
• Input Peak & Signal Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections

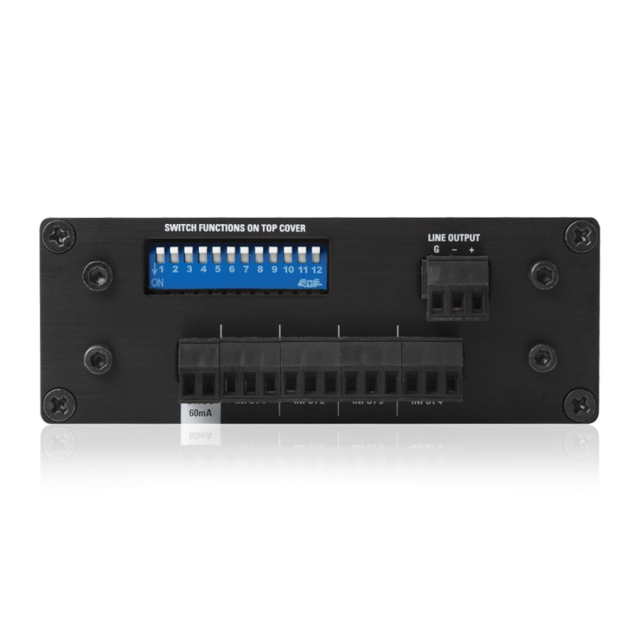

• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Energy Efficient

The TSD-MIX41 4x1 Microphone / Line mixer is ideal for applications where multiple Microphone or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone Microphone / Line mixer that can be easily interfaced with AtlasIED amplifiers. Other applications include restaurants, conference rooms, and schools. Each input is Microphone / Line switchable with phantom power provided for condenser microphones. The high quality, low noise internal Microphone preamps ensure clarity and quiet operation without unwanted coloration.
