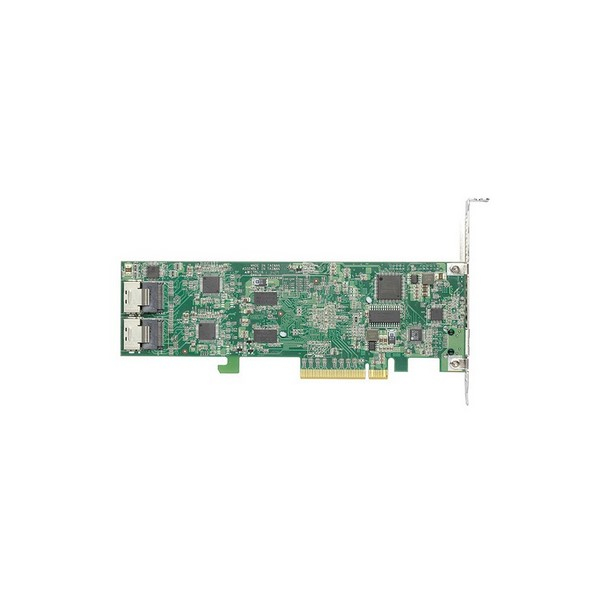

Areca, ARC-1264IL-16, PCIe 2.0 to SATA III RAID Adapters with 16 x Internal Ports

Features:

Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
Multiple RAID selection
Configurable stripe size up to 1MB
Support HDD firmware update
Online array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration simultaneously
Online volume set growth
SED (self-encrypting drives) function support
Multiple pairs SSD/HDD disk clone function
SSD automatic monitor clone (AMC) support
Instant availability and background initialization
Support global and dedicated hot spare
Automatic drive insertion/removal detection and rebuilding
Support for native 4K and 512 byte sector SAS and SATA devices
Support intelligent power management to save energy and extend service life
Support NTP protocol synchronize RAID controller clock over the on board Ethernet port

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

RAID-on-Chip Controller	Dual Core RAID-on-Chip 933MHz
Cache Memory	1GB on-board DDR3-933 SDRAM with ECC protection
Host Bus Interface	8-Lane PCI Express 2.0
Ports	16 x internal
Drive Connectors	4 x SFF-8087
Data Transfer Rate	Up to 6Gb/s per port
Drive Support	Up to 16 x SATA HDDs/SSD
Power Dissipation	Typical: 16.0W

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

RAID-on-Chip Controller	Dual Core RAID-on-Chip 933MHz
Cache Memory	1GB on-board DDR3-933 SDRAM with ECC protection
Host Bus Interface	8-Lane PCI Express 2.0
Ports	16 x internal
Drive Connectors	4 x SFF-8087
Data Transfer Rate	Up to 6Gb/s per port
Drive Support	Up to 16 x SATA HDDs/SSD
Power Dissipation	Typical: 16.0W

Note: Please read description carefully. Do not base your order on the picture presented.
