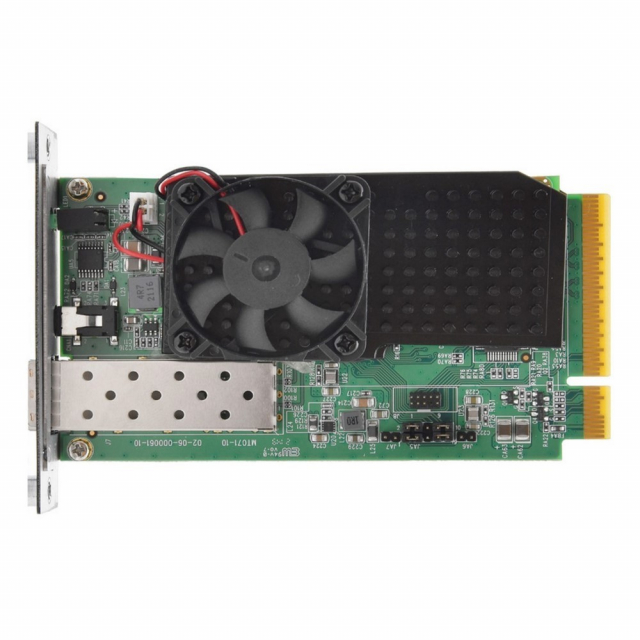

Apantac, SDM-FIB-R-SM, Smart Display Module SDVoE over Single-Mode Fiber Receiver for LCD Monitors that Support SDM

Features:

SDVoE over single mode fiber receiver for SDM-S
Uses LC fiber connectors, supports up to 10 km on single mode fiber
Supports HDMI 2.0/HDCP 2.2/1.4
Supports UHD RGB/4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
Supports all resolutions up to 594 MHz
Supports CEC pass-through
Supports up to 8 channels of audio, including PCM, Dolby True-HD and DTSmaster audio
Supports HDR pass through
Supports RS-232
10Gbps Ethernet Interface
1Gbps pass-through Ethernet Interface

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Input	10Gbps Ethernet Interface over single mode fiber
Output	SDM Connector
Dimensions	80 mm Width x 112 mm Depth
Power Consumption	Up to 10 W
Environment	Operating temperature: -20C ~ 60C, Humidity: 10%~90% / non-condensing

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Input	10Gbps Ethernet Interface over single mode fiber
Output	SDM Connector
Dimensions	80 mm Width x 112 mm Depth
Power Consumption	Up to 10 W
Environment	Operating temperature: -20C ~ 60C, Humidity: 10%~90% / non-condensing

Note: Please read description carefully. Do not base your order on the picture presented.
