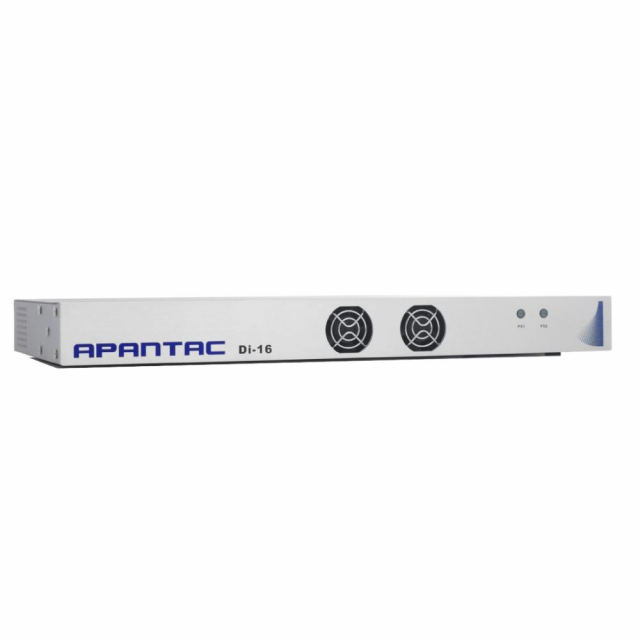

Apantac Di-16 Cost Effective 16x1 HDMI 1.4 Input Multiviewer

Output: 2 Identical HDMI
  • Brand Apantac
  • Part # Di-16
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Output:
Output: 2 Identical HDMI

Features:

  • Low latency - single frame processing delay
  • Low energy - only uses 40 W of power
  • Accepts 16 HDMI 1.4 inputs
  • Windows can be sized and moved freely
  • Decodes up to 4 embedded audio per HDMI input
  • Total of 64 audio meters
  • 2 simultaneous and identical HDMI and SDI outputs
  • Output resolution up to 1080P at 60Hz
  • Ethernet for configuration and external control
  • Dynamic UMD/Label and Tallies (TSL)
  • Standalone labels and 2 customizable logos
  • 2 digital and 2 analog clocks can by synced with LTC or NTP
  • 32 GPIs for tallies, count up/down triggers or preset recalls
  • Borders can be turned on or off
  • 2 sets of safe area markers
  • Visual alarm tags for format, video/audio presence
  • Audio monitoring outputs - stereo, AES, SDI or HDMI
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Inputs16 x HDMI 1.4
Output2 identical HDMI 1.4 with 2 x 3G SDI outputs
Max Resolution1080P at60Hz
Power Consumption70W
Dimension1RU. 446 x 452 x 87 mm (L x W x H)
Weight8.6 kg
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Inputs16 x HDMI 1.4
Output2 identical HDMI 1.4 with 2 x 3G SDI outputs
Max Resolution1080P at60Hz
Power Consumption70W
Dimension1RU. 446 x 452 x 87 mm (L x W x H)
Weight8.6 kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
