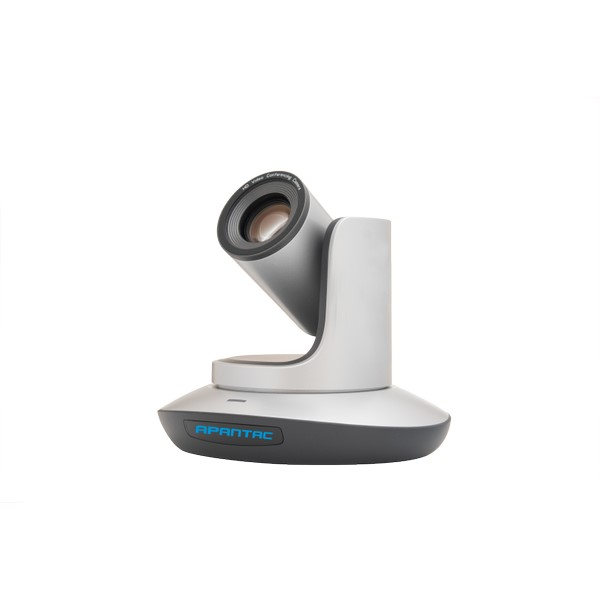

Apantac AP-1080P-PTZ-20x MT HOOD PTZ Camera 20x Optical Zoom

  • Brand Apantac
  • Part # AP-1080P-PTZ-20x
  • Model # MT HOOD
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Features:

  • Compatible with most leading video conferencing software
  • 20x Optical Zoom + 2x Digital Zoom with 61 degree FOV
  • Supports USB, IP, HDMI, SDI and NDI (HX2) output
  • Supports USB 3.0 output
  • Full HD video over IP supports H.264, H.265 decoding
  • Supports POE
  • Standard IP VISCA, Serial VISCA, Pelco-P/D control protocol
  • IP VISCA over TCP/IP
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Optional Accessories
Reviews
Sensor1/2.8 inch, 5 mega pixel high quality CMOS
HDMI1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1920x1080i60/50
SDI1080P60/59.94/50/30/29.97/25, 720P60/59.94/50/30/29.97/25, 1080i60/59.94/50
IPMain Stream 1920x1080 at30-1; 1280x720p30-1; Sub stream: 1280x720p-30-1; 1024x576 at30-1; 640x360 at30-1
USB 3.01920x1080P60/50/30/25; 1280x720P60/50/30/25; 1024x576P30
USB 2.01024x576P30, 960x540P30, 640x360P30, 512x288P30, 352x288P30
Zoom20x optical zoom & 2x digital zoom
FOV61 degrees (diagonal)
Focal LengthF = 5.2 (near) 98 mm(far)
Presets10 via remote controller; 128 via serial port; preset precision: 0.1 degree
Noise Reduction2D & 3D
SNR> 50db
Minimum Lux0.01 lux
White BalanceAuto / Manual/Auto Tracking/One-Push/Indoor/Outdoor
Anti Flicker50H/60Hz/OFF
D/N ModeSupported
GammaSupported
Mirror Image0.01 lux
IrisAuto/Manua
Electric ShutterAuto/Manua
BLCAuto/Manua
FocusAuto/Manua
Rotation AnglePan: 170 ~ +170 degrees; Tilt: -30 ~+90 degrees
Rotation SpeedPan: 0 ~ 120 degrees/second; Tilt: 0 ~ 80 degrees/second
Pan-Tilt FlipSupported
Control PortsRS232 / RS485 / RJ45 / USB 3.0
Video PortHDMI / RJ45 / SDI / USB 3.0 / USB 2.0
Network Speed1 Gigabit
Video encodingH.264 / H.265 and NDI HX2
Bit Rate ControlVariable Bit Rate, Constant Bit Rate
Video Bit Rate1024 Kbps ~ 10240 Kbps
Frames50Hz: 1fps ~ 30fps, 60Hz: 1 fps ~ 30fps
IP ProtocolTCP/IP, HTTP, RTSP, ONVIF, DHCP, VISCA over IP (TCP&UDP)
POESupported
Input VoltageDC 12V, 1A
Weight1.25 kg
Dimension220 x 173 x 190 mm
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Sensor1/2.8 inch, 5 mega pixel high quality CMOS
HDMI1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1920x1080i60/50
SDI1080P60/59.94/50/30/29.97/25, 720P60/59.94/50/30/29.97/25, 1080i60/59.94/50
IPMain Stream 1920x1080 at30-1; 1280x720p30-1; Sub stream: 1280x720p-30-1; 1024x576 at30-1; 640x360 at30-1
USB 3.01920x1080P60/50/30/25; 1280x720P60/50/30/25; 1024x576P30
USB 2.01024x576P30, 960x540P30, 640x360P30, 512x288P30, 352x288P30
Zoom20x optical zoom & 2x digital zoom
FOV61 degrees (diagonal)
Focal LengthF = 5.2 (near) 98 mm(far)
Presets10 via remote controller; 128 via serial port; preset precision: 0.1 degree
Noise Reduction2D & 3D
SNR> 50db
Minimum Lux0.01 lux
White BalanceAuto / Manual/Auto Tracking/One-Push/Indoor/Outdoor
Anti Flicker50H/60Hz/OFF
D/N ModeSupported
GammaSupported
Mirror Image0.01 lux
IrisAuto/Manua
Electric ShutterAuto/Manua
BLCAuto/Manua
FocusAuto/Manua
Rotation AnglePan: 170 ~ +170 degrees; Tilt: -30 ~+90 degrees
Rotation SpeedPan: 0 ~ 120 degrees/second; Tilt: 0 ~ 80 degrees/second
Pan-Tilt FlipSupported
Control PortsRS232 / RS485 / RJ45 / USB 3.0
Video PortHDMI / RJ45 / SDI / USB 3.0 / USB 2.0
Network Speed1 Gigabit
Video encodingH.264 / H.265 and NDI HX2
Bit Rate ControlVariable Bit Rate, Constant Bit Rate
Video Bit Rate1024 Kbps ~ 10240 Kbps
Frames50Hz: 1fps ~ 30fps, 60Hz: 1 fps ~ 30fps
IP ProtocolTCP/IP, HTTP, RTSP, ONVIF, DHCP, VISCA over IP (TCP&UDP)
POESupported
Input VoltageDC 12V, 1A
Weight1.25 kg
Dimension220 x 173 x 190 mm
