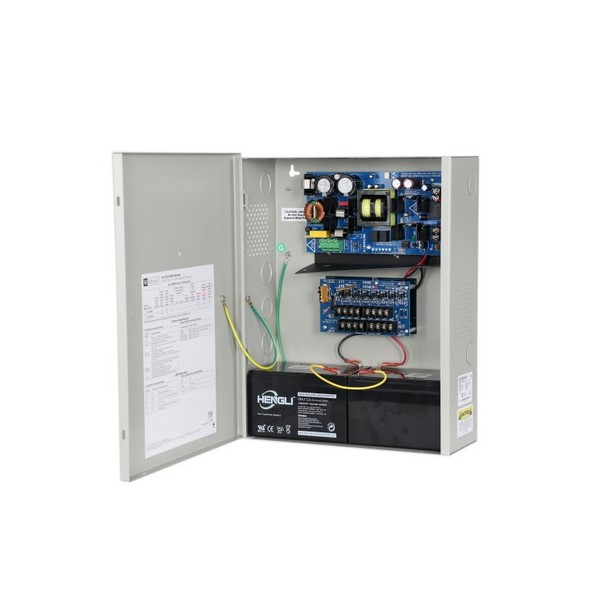

Altronix AL1024NK8 Dual Output Power Supply/Charger BC400 Enclosure

AL1024NK8 Includes Only:

• Enclosure, 15.5"H x 12"W x 4.5"D, Gray, 19 Gauge, Indoor
• Power Supply Charger, Single Fused Output, 24VDC at 10A, 115VAC, Board
• Dual Input Power Distribution Module, 8 Fused Outputs
• Voltage Regulator. 24VDC input into 5VDC or 12VDC output

Features:

• Unit provides 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power)
• Short circuit and overvoltage protection
• Supervision
• AC Fail;
• Battery Fail and Battery Presence
• Bi-colored LEDs provide visual verification of voltage on each output
• Stackable sub-assemblies save valuable space
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries
• Eight (8) independently controlled outputs
• Filtered and electronically regulated outputs
• Short circuit and overload protection
• Kit contents are UL Listed sub-assemblies
• CE European Conformity

Altronix AL1024NK8 sub-assembly kit converts a 115VAC 60Hz input into eight (8) fuse protected 12VDC or 24VDC outputs with a total of 10A max. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled fuse protected outputs.
