Type:: Type: 16 Output, Class 2 Rated Power-Limited Output(s) (auto-resettable)

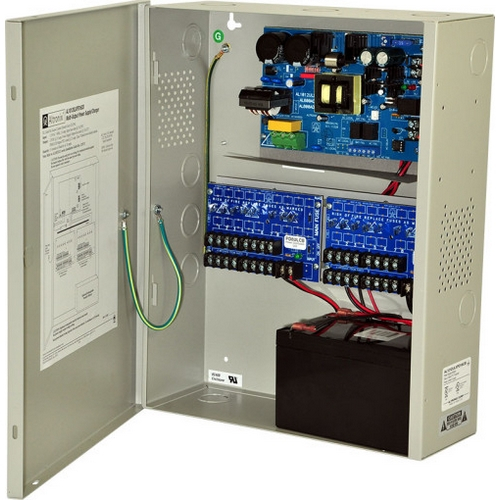

Altronix, AL1012ULXPD16CB, Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC at 10A, 115VAC, BC400 Enclosure

Features:

Fused or PTC ptotected outputs
Supervision
- AC Fail
- Battery Fail and Battery Presence
Built-in charger for sealed lead acid or gel type batteries
Instantaneous transfer to stand-by batteries
Short circuit and overload protection
AC input and DC output options
UL Listed in the U.S. and Canada
CSFM and MEA Approved

Altronix AL1012ULX series power supply/chargers convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs. Outputs are 12VDC with a total of 10A max.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Input

Input 115VAC, 60Hz, 2.6A.
Input fuse rated at 5A/250V.

Output

12VDC output.
10A continuous supply current.
Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
Outputs are rated at 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Charging

Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 0.7A.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Temperature

Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 299VA.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Input

Input 115VAC, 60Hz, 2.6A.
Input fuse rated at 5A/250V.

Output

12VDC output.
10A continuous supply current.
Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
Outputs are rated at 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Charging

Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 0.7A.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Temperature

Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 299VA.

Note: Please read description carefully. Do not base your order on the picture presented.
