Alderon, 2011091, FLEX FLCSO1S230C25-E3S1+3AGHWC30, FLEX™ Capacitor Start, Opaque Door, Single Phase Simplex, 120VAC Control and 230VAC Pump, Pump Circuit Breaker, 16 - 24 Amps, Enclosure Size 14" x 12" x 6", Seal & Thermal Pump Sensor, (3) Altra Gold Control Switches, Normally Open, Cast Iron Cable Weights, 30' Cable
- Type 4X Enclosure, Indoor or Outdoor Use, Pad-Lockable

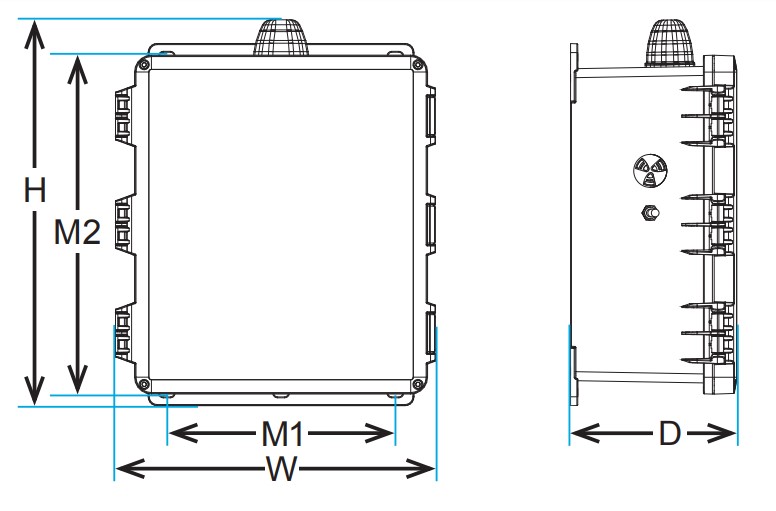

- Standard Enclosure Size 14" x 12" x 16" (inches)

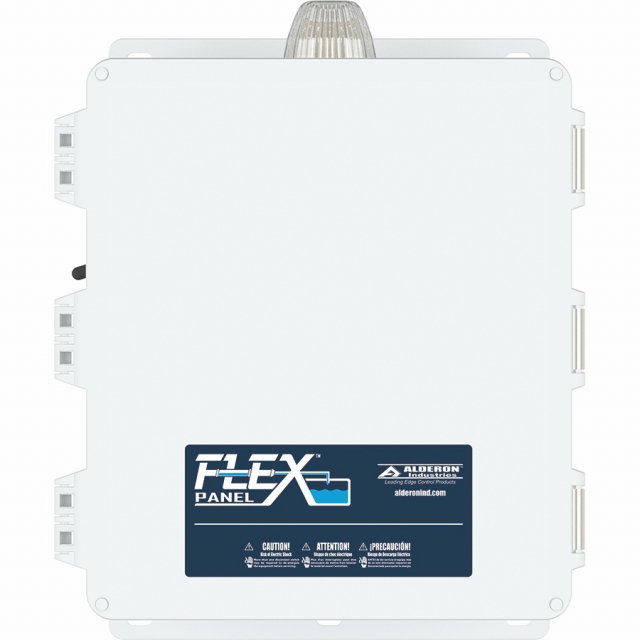

- Pad Lockable Opaque Door and Top Mounted Beacon - Red Flashing LED
- Capacitor Bracket - For Customer Supplied Capacitor Kit
- Multi-Color Super Bright LED's
- Green Normal
- Red Alarms
- Blue Pump Run
- Red/Yellow Sensor Error
- Many More
- Automatic Resettable Alarm and Control Fuses

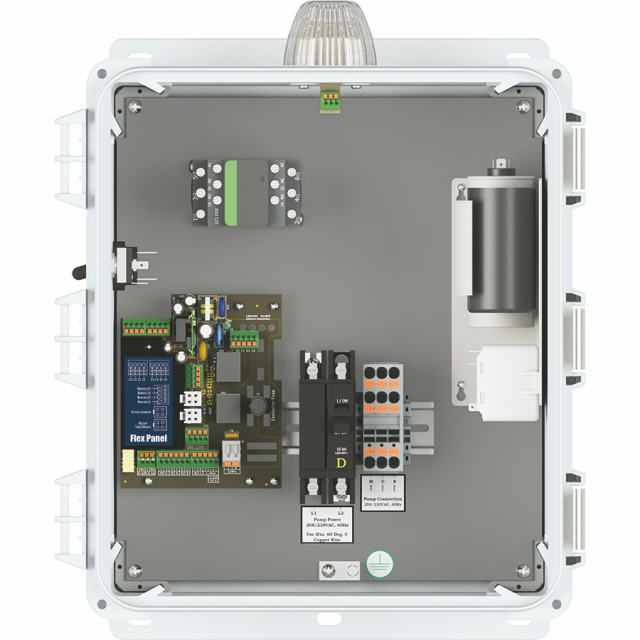

- Built-In Printed Circuit Board Surge Protection
- Conformal Coated Printed Circuit Boards for Reliable Thermal and Moisture Protection
- Easily Change Configurations
- Demand Dosing
- Timed Dosing (Low Alarm/Redundant Off, Timer Enable, Peak Timer, High Alarm)
- Configure Transducer Settings
- Enable Pump Exercising
- Seal Fail Alarm or Pump Shutdown
- Sensor Options
- Field accepts up to 5 Float Inputs to Allow for Low Alarm and Auxiliary Switch Options
- Configure Float, Auxiliary or 4- 20 mA Submersible Transducer
- Statistic Tracking (each pump)
- Pump Elapsed Time
- Min/Max/Avg Pump Run Times
- Pump Cycle Counter
- Total Gallons Pumped
- High Level Stats
- Many More
- Included Auxiliary "Dry" Contacts
- Pump Run
- General Alarm
- Configurable Reverse Operated for General Alarm Plus Power Loss
- Hand-Off-Auto (HOA) Pump Selector Switch (each pump)
- Off Reminder, Yellow Flashing LEDs (beacon)
- Configurable Pump Disable

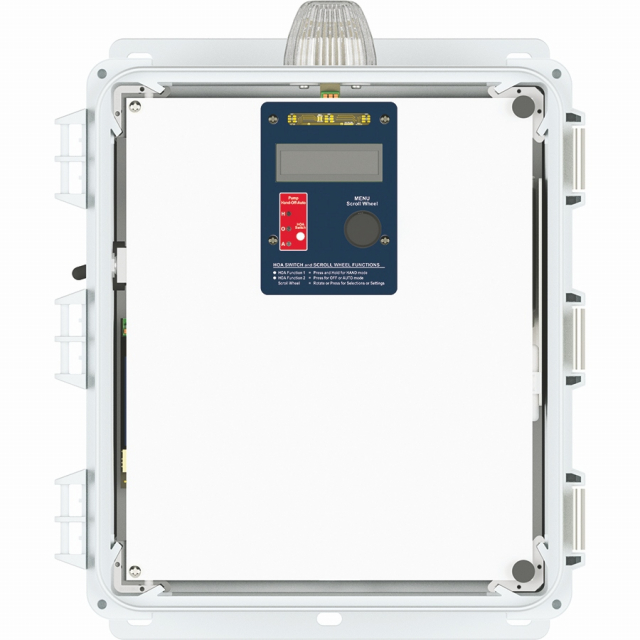

- Scroll Wheel and Digital Display
- Navigate and Access Statistic Tracking
- Navigate and Configure Settings
- Communicates with Text Information
- Password Protected Settings
- Exterior Test/Silence Switch
- Quick View of Pump and Alarm Stats
- Check Alarm LEDs and Buzzer or Silence Buzzer during Alarm
For more information, please see
Data Sheet and Quick Start Quide
