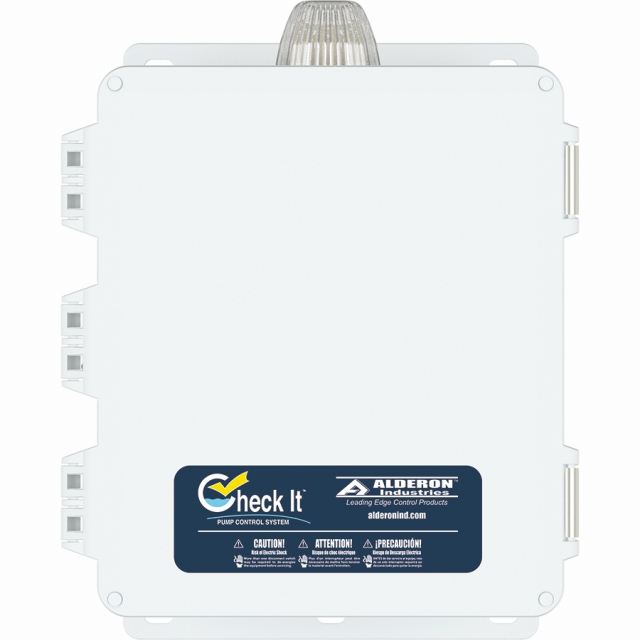

Alderon, 2010721, CKIT3S460CO1.6-2.5+3AGHWP20 Three Phase Simplex, 208/230/460VAC, 1.6 - 2.5 Amps, Enclosure Size 12" x 10" x 6", (3) Altra Gold Control Switches, Normally Open, Plastic Cable Weights, 20' Cable
- Type 4X Enclosure, Indoor or Outdoor Use, Pad-Lockable

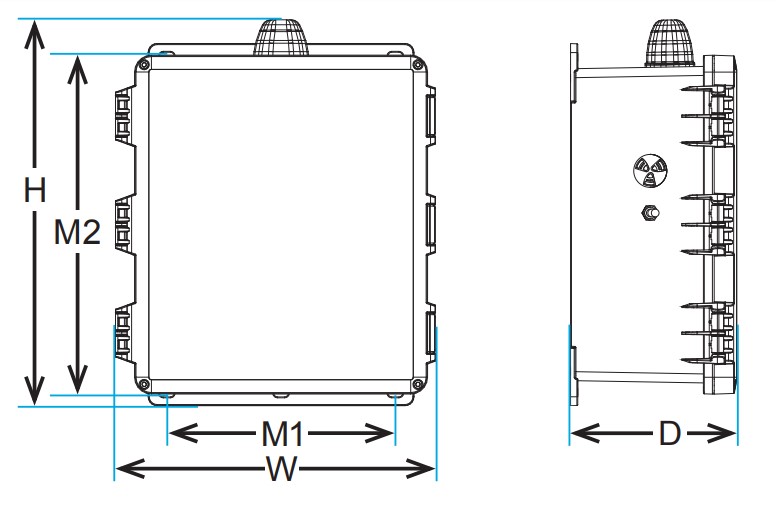

- Standard Enclosure Size 12" x 10" x 6" (inches)
- Opaque Door, Alarm Beacon with Red Flashing LEDs
- Alarm Buzzer and Alarm Test/Silence Switch

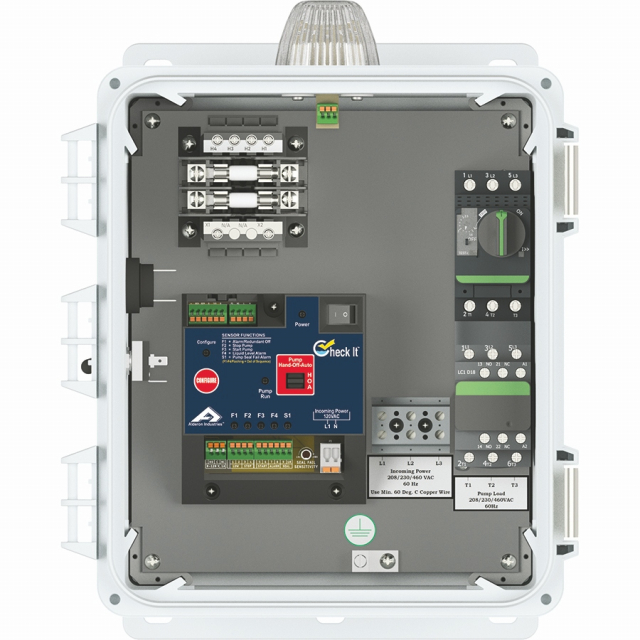

- Pump Motor Protective Switch (MPS) and IEC Contactor
- Combination Circuit Breaker, IEC Contactor Pump Starter, and Overload Relay
- Motor Protective Switch includes Adjustable Pump Amp Range which Protects the Pump from Overcurrent Damage
- Motor Protective Switch for Pump Disconnect
- Beacon with Vibrant Multi-Color LEDs
- Green (normal/pump run), Red (alarms), and Amber (error/HOA off)
- Event LEDs will flash and normal state LEDs will be solid
- System Status LEDs (circuit board)
- Automatic Resettable Alarm and Control Fuses
- Built-In Printed Circuit Board Surge Protection
- Conformal Coated for Reliable Thermal and Moisture Protection
- Built-in Lag Delay Timer to Prevent Simultaneous Pump Run
- Pump Selector Switch
- Set the Lead Pump to Pump 1, Alternate, or Pump 2
- Easily Change Configurations
- Sensor Error Input, Automatic or Manual Alarm Reset, Redundant Start Enable, Low Alarm Enable, and Lag/Alarm Disable

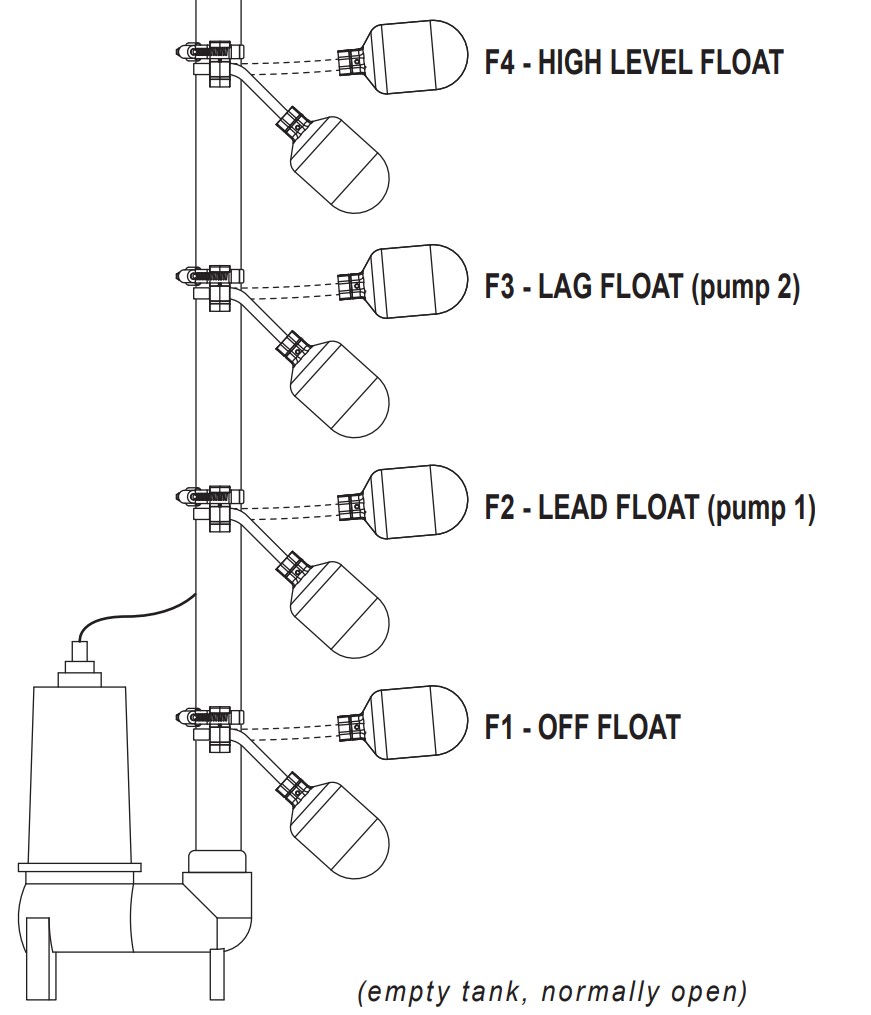

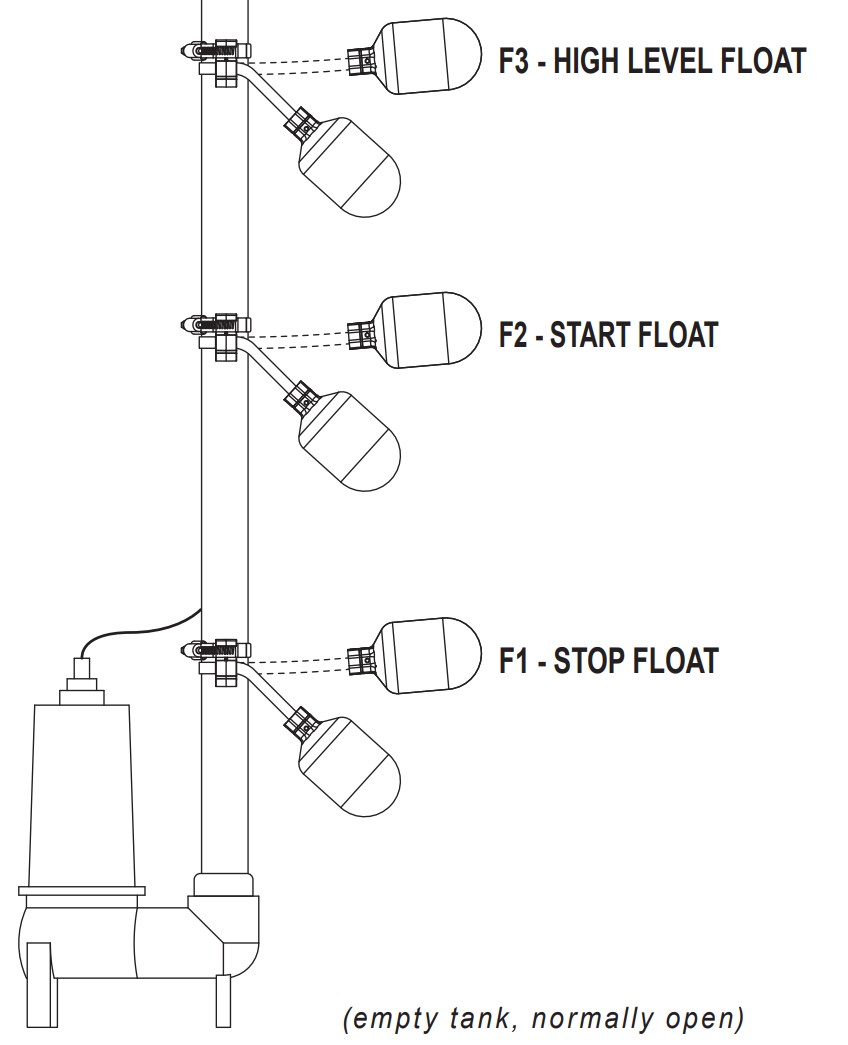

- Sensor Options (signaling device)
- Field Wire up to (4) Digital Inputs
- Low Alarm/Redundant Off, Off, Start, and High Alarm
- Included Auxiliary "Dry" Contacts
- Normally Open or Closed, General Alarm (any) plus Power Loss
- Hand-Off-Auto (HOA) Pump Selector Switch
- Off Reminder, Yellow Flashing LEDs (beacon)
- Configure/Test Button (interior, circuit board)
- Activate Alarm Test, Clear Alarms, and Enable or Disable System Configuration Settings
- Exterior Test/Silence Switch
- Activated and Deactivated less than 5-seconds, Activates Alarm Test
- Activated more than 5-seconds, Clears all Alarms
- Silence Buzzer during Alarm
For more information, please see
Data Sheet and Quick Start Quide
