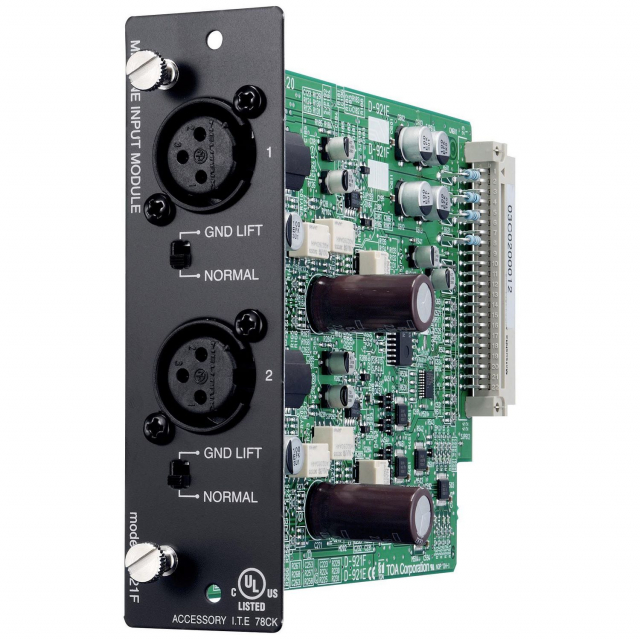

TOA D-921F D-900 Series 2 x Mic/Line 24-Bit Input Module

A/D Converter (Bit): 24, Input/Output: with XLR Connectors
  • Brand TOA
  • Part # D-921F
  • Model # D-900 Series
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

A/D Converter (Bit):
A/D Converter (Bit): 24
Input/Output:
Input/Output: with XLR Connectors

The D-921F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Input2 channels, Mic/Line changeable
Mic: -50/-36 dB*, 4.7 k Ohm , electronically-balanced,
equivalent to XLR-3-31 type
Line: -10/+4 dB*, 10 k Ohm , electronically-balanced,
equivalent to XLR-3-31 type
Phantom power supply (can be used when set for the microphone)
15 V: D-901 (option), DP-K1 (option), D-2008SP (option)
12 V: SX-2100AI (option)
Ground lift switch
A/D Converter24 bit
Sampling Frequency48 kHz
Frequency Response20 Hz - 20 kHz, +/-1 dB (+4 dB* input)
Dynamic Range100 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion0.05 % or less (+4 dB* input)
FinishPanel: Pre-coated steel plate, black, 30 % gloss
Dimensions35 (W) x 119.5 (H) x 178.4 (D) mm
Weight150 g
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Input2 channels, Mic/Line changeable
Mic: -50/-36 dB*, 4.7 k Ohm , electronically-balanced,
equivalent to XLR-3-31 type
Line: -10/+4 dB*, 10 k Ohm , electronically-balanced,
equivalent to XLR-3-31 type
Phantom power supply (can be used when set for the microphone)
15 V: D-901 (option), DP-K1 (option), D-2008SP (option)
12 V: SX-2100AI (option)
Ground lift switch
A/D Converter24 bit
Sampling Frequency48 kHz
Frequency Response20 Hz - 20 kHz, +/-1 dB (+4 dB* input)
Dynamic Range100 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion0.05 % or less (+4 dB* input)
FinishPanel: Pre-coated steel plate, black, 30 % gloss
Dimensions35 (W) x 119.5 (H) x 178.4 (D) mm
Weight150 g
