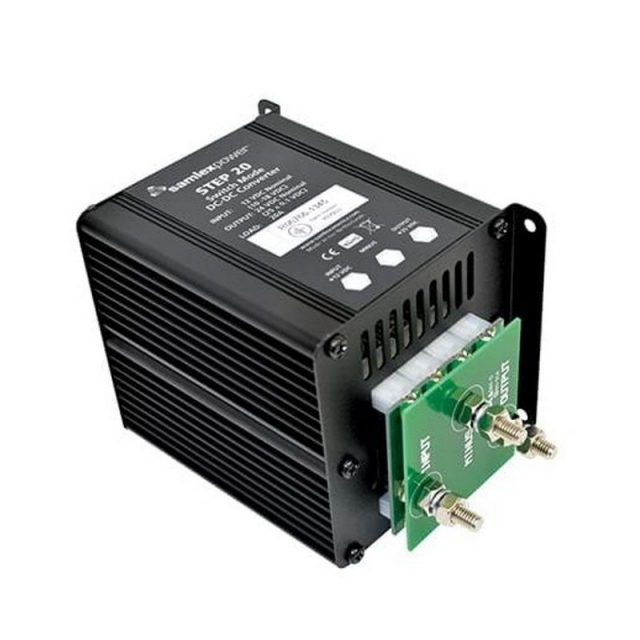

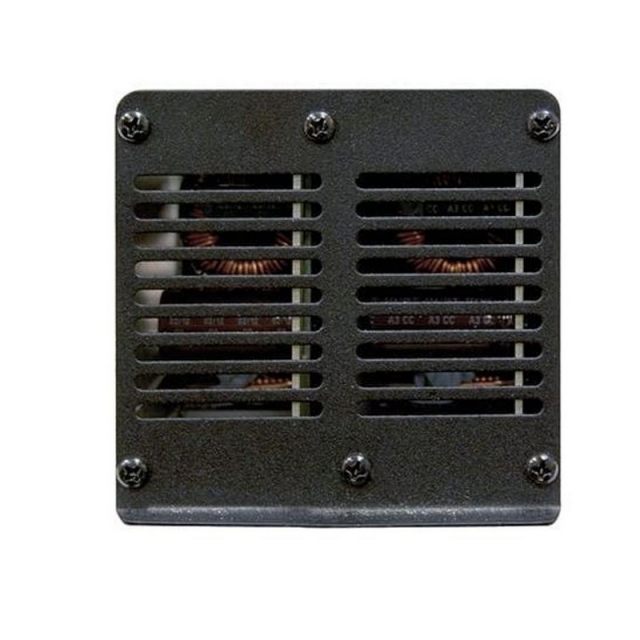

Buy Samlex Step 20, Step-Up Converter 12VDC to 24VDC

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Step up from 12VDC to 24VDC at 20 Amps DC
Switch Mode design
CE approved
High Efficiency
Over-current protection
Over-voltage, Reverse Polarity protection
6.3 mm push-on flat pin connectors

Applications:

Industrial
Commercial
OEM
Recreational
Marine

Non-isolated, switch mode design. Step up from 12VDC to 24VDC at 20 Amps DC with very low energy consumption. Small size and light weight. Protected against overload, short circuit, reverse polarity and high voltage and transient suppression on input side

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input

Input Voltage Range

9-18 VDC

Input Current at No Load

< 5mA

Output

Output Voltage at no Load

25V ± 0.1V

Output Voltage Regulation

+0% / -5%

Output Current

20A

Output Noise and Ripple

< 50mV RMS

Peak Efficiency

92%

Isolation

Isolation: Input to Output

No. Common Negative

Isolation: Input/ Output to Chassis

Isolated

Temperature Rise/ Cooling

Temperature Rise AFTER 30 Min of Operation at Full Load

30°C at 20°C ambient

Type of Cooling

By convection (No Fan)

Protections

12V Input Side Fuse (Internal)

80A (2 x 40A)

12V Input Side Fuse (External)

70A (2 x 35A) (Not supplied)

24V Output Side Fuse (Internal)

No Fuse

24V Output Side Fuse (External)

20A (Not supplied)

Reverse Polarity ON Input Side

External / Internal Input Side Fuse will bLow

High Voltage and Transient Suppression On Input Side

Will bLow Input side fuse at Continuous Input Voltage > 40V.
Also protects against Load dump

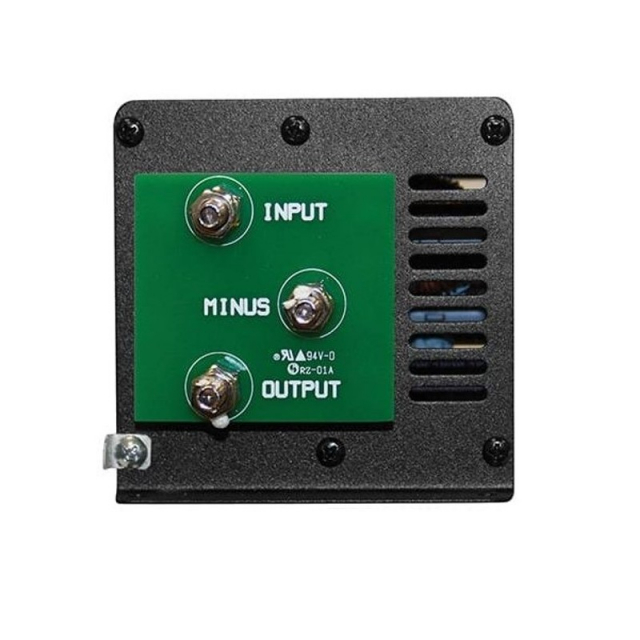

Input Output Connections

Type of Connectors

M6 Bolt and Nut

Compliance

ROHS

RoHS compliant

European Conformity

CE marke
Emission: EN50081-1
Immunity: EN50082-1

European Automotive EMC Directive

95/54/EC

Environmental

Operating Temperature Range

-20°C / -4°F to 30°C / 86°F (De-rate linearly to zero at 70°C / 158°F)

Humidity

95%. Non Condensing

Mechanical

Chassis

Anodized Aluminum with plastic end cOvers

Dimensions (W x D x H), MM

152 x 93 x 91 mm / 6 x 3.7 x 3.6 in

Weight

1.8 kg / 4 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Input

Input Voltage Range

9-18 VDC

Input Current at No Load

< 5mA

Output

Output Voltage at no Load

25V ± 0.1V

Output Voltage Regulation

+0% / -5%

Output Current

20A

Output Noise and Ripple

< 50mV RMS

Peak Efficiency

92%

Isolation

Isolation: Input to Output

No. Common Negative

Isolation: Input/ Output to Chassis

Isolated

Temperature Rise/ Cooling

Temperature Rise AFTER 30 Min of Operation at Full Load

30°C at 20°C ambient

Type of Cooling

By convection (No Fan)

Protections

12V Input Side Fuse (Internal)

80A (2 x 40A)

12V Input Side Fuse (External)

70A (2 x 35A) (Not supplied)

24V Output Side Fuse (Internal)

No Fuse

24V Output Side Fuse (External)

20A (Not supplied)

Reverse Polarity ON Input Side

External / Internal Input Side Fuse will bLow

High Voltage and Transient Suppression On Input Side

Will bLow Input side fuse at Continuous Input Voltage > 40V.
Also protects against Load dump

Input Output Connections

Type of Connectors

M6 Bolt and Nut

Compliance

ROHS

RoHS compliant

European Conformity

CE marke
Emission: EN50081-1
Immunity: EN50082-1

European Automotive EMC Directive

95/54/EC

Environmental

Operating Temperature Range

-20°C / -4°F to 30°C / 86°F (De-rate linearly to zero at 70°C / 158°F)

Humidity

95%. Non Condensing

Mechanical

Chassis

Anodized Aluminum with plastic end cOvers

Dimensions (W x D x H), MM

152 x 93 x 91 mm / 6 x 3.7 x 3.6 in

Weight

1.8 kg / 4 lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
