Buy Samlex SSW-350-12A, SSW Series 350 Pure Sine Wave Inverter 350 Watt

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Watts:: Watts: 350

Features:

USB Charging Port
2 three prong outlets
Comes with battery clamps
High performance, high surge power (2X)
True sine wave output for sensitive loads
Economically priced
Samlex "Soft Start" & "Low Interference" technology
Universal Circuit Protection: thermal, battery, overload, short circuit & earth fault
Cool surface technology

Applications:

Service vehicles
Mobile Offices
Boats
Recreation Vehicles, Camping
Telecommunication
Field work / Construction sites
Solar power systems
Emergency backup power
Home electronics: TV, DVD, video games

SSW Series 350 watt high efficiency pure sine wave inverters convert 12 VDC to 115 VAC at an output frequency of 60 Hz. These compact and lightweight models feature soft start technology and 2X the surge. Economically priced for reliable pure sine wave power.

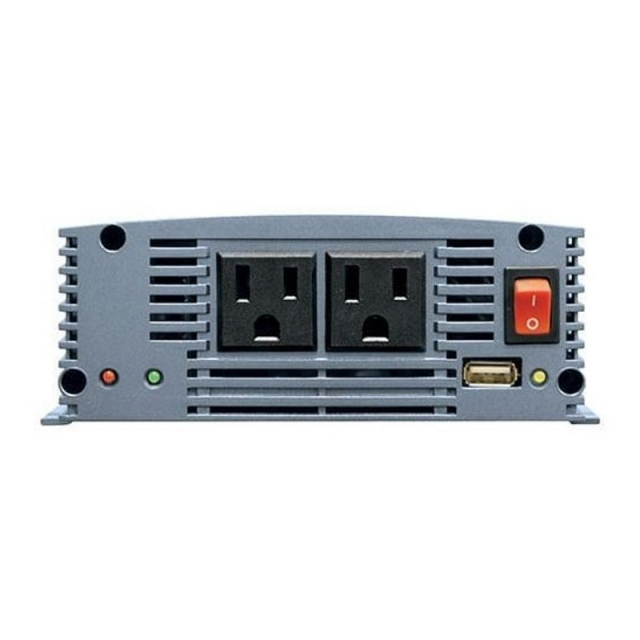

Includes 2 three prong outlets and a USB charging port.

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input
DC Input Voltage Range	10.5 - 15.3 VDC (± 0.3 VDC)
DC Input Current at RatED Load	35A
DC Input Current at No Load	< 0.5A
Output
AC Output Voltage	115 VAC (± 5 VAC)
AC Output Frequency	60 Hz (± 1 Hz)
AC Output Wave Form	Pure Sine Wave
Continuous Active Output Power	350W
Maximum Active Surge Power (Less than 1 Sec)	700W
Peak Efficiency	89%
Ports
USB Charging Port (+5 VDC, 500 MA)	Yes
Protections
Low Input Voltage Warning Alarm	11.0 VDC ± 0.3 VDC
Low Input Voltage Shutdown	10.5 VDC ± 0.3 VDC
High Input Voltage Shutdown	15.3 VDC ± 0.3 VDC
Ground Fault/Overload/Short Circuit Shutdown	Yes
Over Temperature Shutdown	Yes
Cooling	2-Speed Fan
Connections

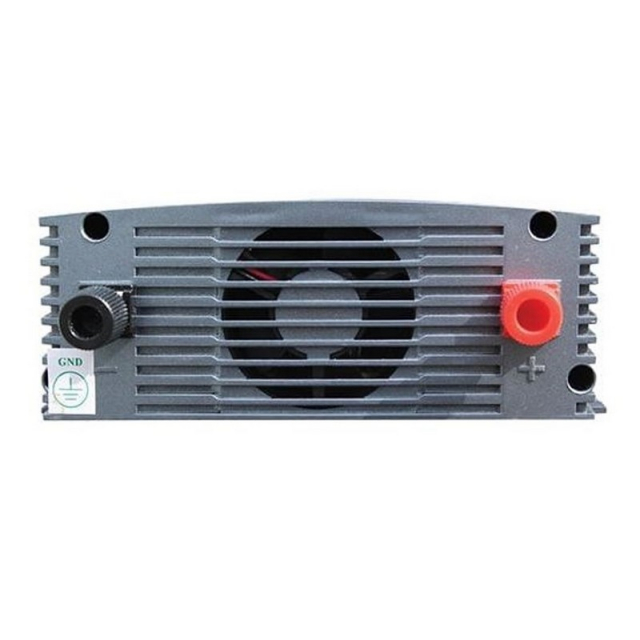

Input	Terminals wth Thumb Screw (M4)
Output	2 x NEMA5-15R North American Receptacles
Safety
Compliance	Listed to UL Standard UL-458
Operating Ambient Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-30°C to 70°C / -26°F to 158°F
Dimensions (W x D x H ), Inches	6.10 x 8.86 x 2.32
Dimensions (W x D x H), MM	155 x 255 x 59
Weight, LB	2.0
Weight, KG	0.9
Accessories Included
DC Input Wires with Battery Clamps	3’ AWG #12

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Input
DC Input Voltage Range	10.5 - 15.3 VDC (± 0.3 VDC)
DC Input Current at RatED Load	35A
DC Input Current at No Load	< 0.5A
Output
AC Output Voltage	115 VAC (± 5 VAC)
AC Output Frequency	60 Hz (± 1 Hz)
AC Output Wave Form	Pure Sine Wave
Continuous Active Output Power	350W
Maximum Active Surge Power (Less than 1 Sec)	700W
Peak Efficiency	89%
Ports
USB Charging Port (+5 VDC, 500 MA)	Yes
Protections
Low Input Voltage Warning Alarm	11.0 VDC ± 0.3 VDC
Low Input Voltage Shutdown	10.5 VDC ± 0.3 VDC
High Input Voltage Shutdown	15.3 VDC ± 0.3 VDC
Ground Fault/Overload/Short Circuit Shutdown	Yes
Over Temperature Shutdown	Yes
Cooling	2-Speed Fan
Connections
Input	Terminals wth Thumb Screw (M4)
Output	2 x NEMA5-15R North American Receptacles
Safety
Compliance	Listed to UL Standard UL-458
Operating Ambient Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-30°C to 70°C / -26°F to 158°F
Dimensions (W x D x H ), Inches	6.10 x 8.86 x 2.32
Dimensions (W x D x H), MM	155 x 255 x 59
Weight, LB	2.0
Weight, KG	0.9
Accessories Included
DC Input Wires with Battery Clamps	3’ AWG #12

Note

Note: Please read description carefully. Do not base your order on the picture presented.
