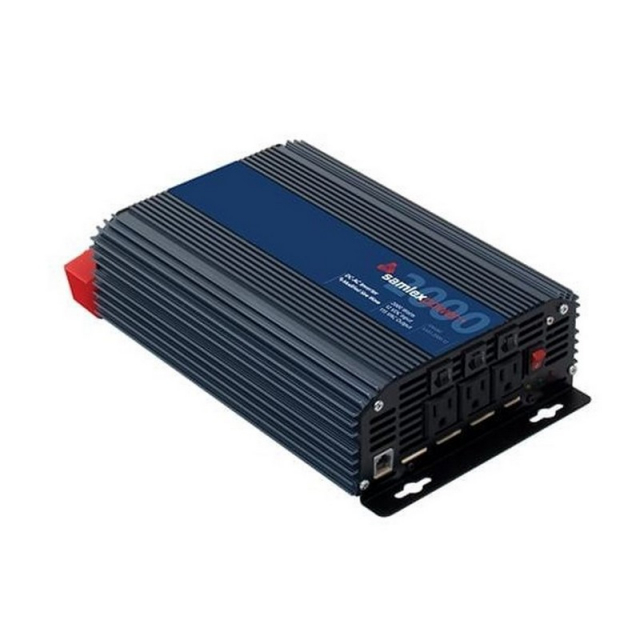

Buy Samlex SAM-2000-12, SAM Series 2000 Watt Modified Sine Wave Inverter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Watts:: Watts: 2000

Features:

Compact design
Load controlled cooling fan
Low battery input alarm
Universal protection circuit: thermal, battery, overload, short circuit, earth fault
Soft start technology
Cool surface technology
Low interference technology

Applications:

Solar power systems
Emergency backup power
Service vehicles
Mobile offices
Recreational vehicles, camping
Telecommunications
Field work/construction sites
Home electronics: TV, DVD and video games

SAM 2000 Watt low interference, high efficiency modified sine wave DC-AC inverters convert 12 VDC to 115 VAC at an output frequency of 60 Hz.

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input

Battery System Voltage

12 VDC

Nominal Input Voltage

12.5 VDC

Input Voltage Range

10.5 VDC to 15.0 (± 0.5) VDC

Input Current at Continuous Power

200A

Input Current at No Load

0.75A to 0.85A

Output

Output Voltage Wave Form

Modified Sine Wave

Output Voltage

115 VAC

Output Voltage Regulation

+10% / - 0%

Output Frequency

60 Hz ± 5%

Output Power, Continuous (Resistive Load)

2000W

Output Power, Surge (< 1 Sec, Resistive Load)

4000W

Peak Efficiency (at 50% of Continuous Power)

90%

USB Charging Port

Not available

Protections

Low Input Voltage Alarm

Yes (10.8 VDC ± 0.3 VDC)

Low Input Voltage Shutdown

10.5 VDC ± 0.5 VDC

High Input Voltage Shutdown

Yes. (> 15.5 VDC ± 0.2 VDC)

Overload & Ground Fault Shutdown

Yes (Latches in Shutdown condition. Manual reset by switching off and switching on the on/off Switch)

Over Temperature Shutdown

Internal Hot Spot 88°C to 115°C.
Auto-reset when cools down by 10°C to 15°C

Cooling Fan, Load Controlled, ON at

90 to 110W

Leakage Protection

Yes (Shutdown)

Input Fuse, 32 V

350A (10 x 35A)

Connections

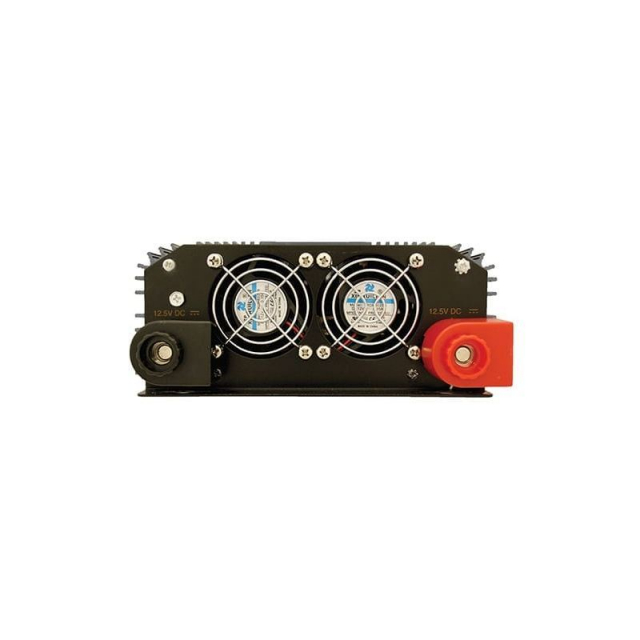

Input Connection

Nut & Bolt, M9

AC Output - No of NEMA5-15R Receptacles

Remote Control Port

Yes

General

Operating Temperature Range

0°C to 25°C / 32°F to 77°F at 100% Loading;
26°C to 35°C / 78.8°F to 95°F at 80% Loading

Operating Humidity

< 80%

Neutral to Chassis Bonding

No. Neutral is floating

Dimensions, MM (W x D x H)

202 x 345 x 84

Dimensions, Inches (W x D x H)

7.95 x 13.58 x 3.3

Weight, KG

3.9

Weight, LB

8.5

Notes
