| Interface |

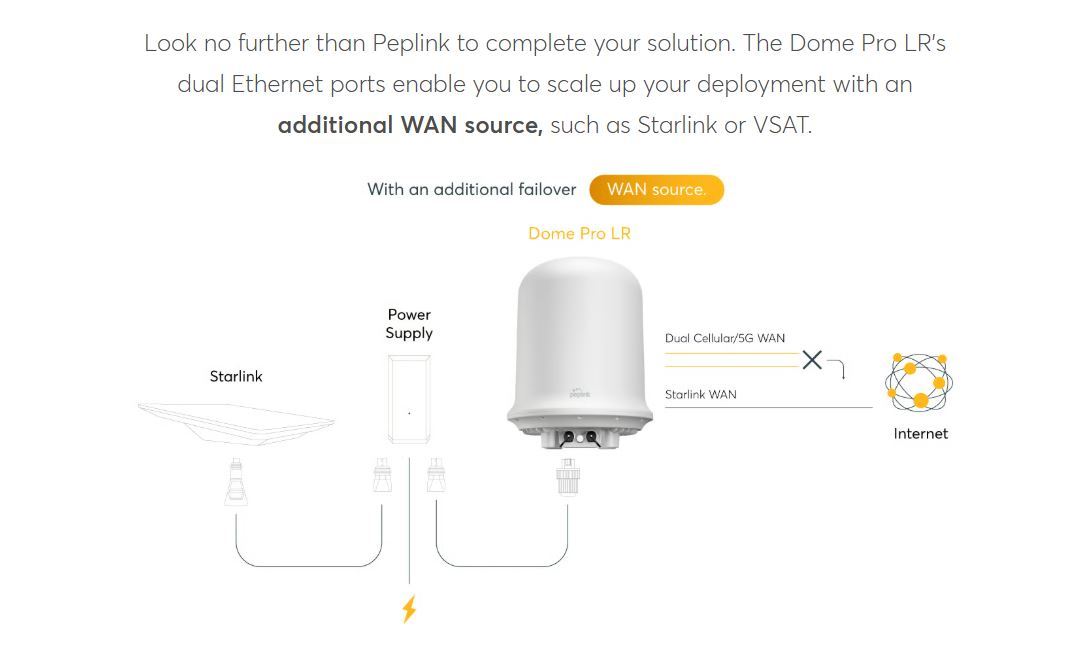

| WAN Interface | - 1× 10/100/1000M Ethernet
- 2× 5G Modems with Redundant SIM Slots
- 1× 10/100/1000/2500M Ethernet
|
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 6 2×2 MU-MIMO
Wi-Fi WAN and/or AP |
| SpeedFusion Features |
| Capabilities | - Hot Failover
- WAN Smoothing
- Bandwidth Bonding
|
| Number of SpeedFusion VPN Peers | 2 / 5 / 10 / 20 |
| Router Throughput | 1 Gbps |
| SpeedFusion VPN Throughput | - No Encryption: 400 Mbps
- 256-bit AES: 200 Mbps
|
| Recommended Users | 1 - 150 |
| Cellular Performance |
| Cellular Data Rate (Downlink / Uplink) | - 5G: 3.4 Gbps / 900 Mbps
- CAT-20: 1.6 Gbps / 200 Mbps
|
| Hardware |
| Antenna | - 8× Internal Long Range Optimized Cellular Antennas
- 2× Internal Wi-Fi Antennas
- 1× Internal GPS Antenna
|

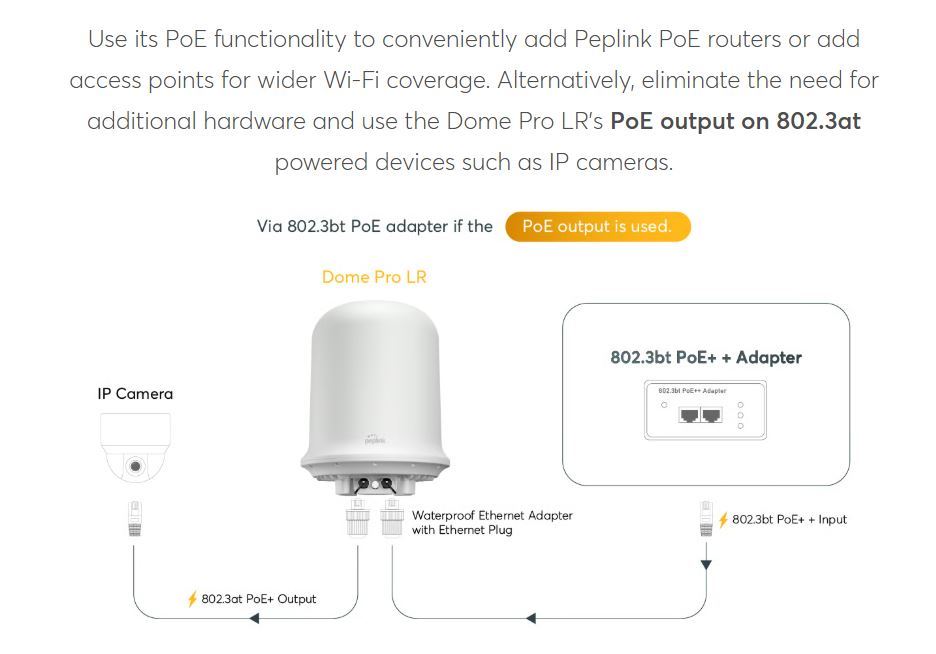

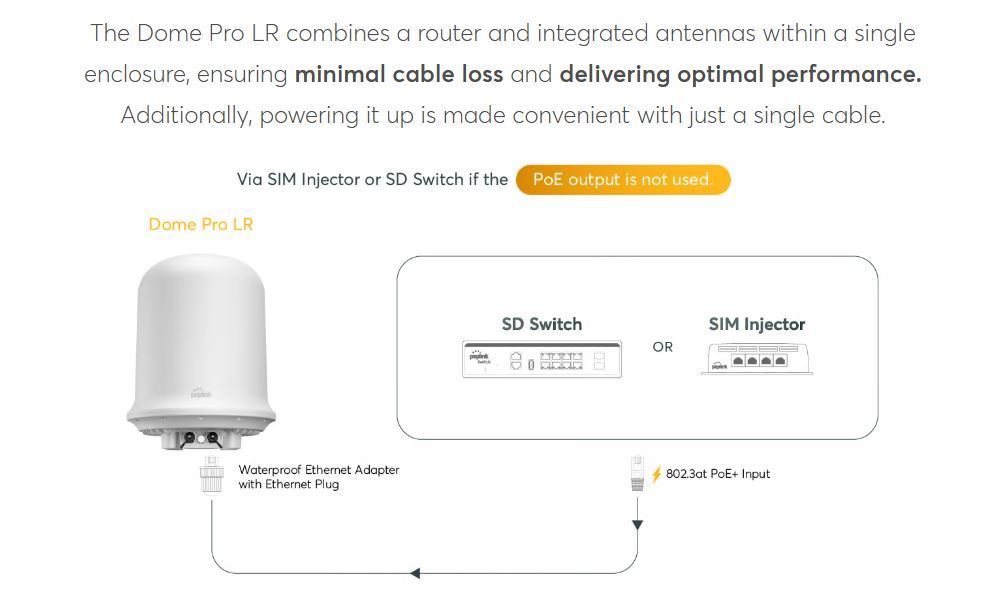

| Power Input | - 1× 802.3at PoE+ (without PoE output)
- 1× 802.3bt PoE++ (with PoE output)
|
| Power Output | 1× 802.3at PoE+ |
| Power Consumption | 24 W (max., without PoE output) |
| Dimensions | 14.6 in (Ø) × 18.8 in (H) / 370 mm × 478.5 mm |
| Weight | - 14 lb / 6.35 kg
- 22 lb / 9.98 kg (With Packaging)
|
| Environmental |
| Operating Temperature | −40° - 149°F / −40° - 65°C |
| Humidity | 15% - 95% (non-condensing) |
| Certifications | - FCC, CE, RoHS
- EN 61000 Electromagnetic Compatibility
|
| SIM Options |
| Supported Types | - Nano-SIM (4FF)
- Peplink eSIM
- BYO eSIM (2 profiles per modem)
- RemoteSIM from SIM Injector
- FusionSIM
|
| Ordering Information |
| Regions | Global |
| 5G Bands | 5G (SA & NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
