Eastwood 32558 Tube Beading Dies

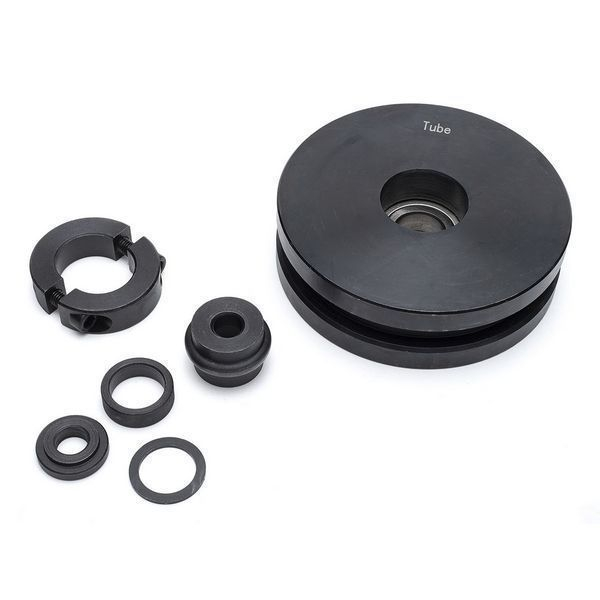

32558 Includes Only:

• (1) Tube Beading Male Die
• (1) Tube Beading Female Die
• (1) Counterbore Washer
• (1) Material Stop
• (1) Spacer

Increase the capability of your motorized bead roller with Tube Beading Dies that are capable of forming up to 18 gauge steel and 16 gauge aluminum. These are designed to fit the Eastwood motorized bead roller as well as other motorized bead rollers with 3/4" shafts and 2.5" shaft spacing.

Dies form a bead that is 0.25" tall and 0.30" to 0.35" wide.

These dies are not compatible with plate style manual bead rollers that have 22MM Shafts.

Quickly produces a beaded profile in tubing Female die is on bearings to eliminate slipping. 1.25" Minimun Tubing ID needed for die clearance Designed for Fabricated Motorized Bead Rollers with 3/4" Diameter Shafts and 2.5" Shaft spacing Works with up to 16 Ga Steel Works with up to 14 Ga Aluminum
